Precision Shaft Manufacturing: RFQ Checklist for OEM Buyers

Ask which features need clarification, which processes are included, and what requires separate confirmation. Have each supplier identify tooling, fixture, material, inspection and packing assumptions. Send the same clarification to every bidder so the comparison remains fair.

List mandatory requirements separately from preferences. If a requirement is provisional, mark it as such and ask for the cost or schedule implication. Keep an approved version of the request with the final quotation so later drawing changes do not silently become part of the original price.

Material review: steel grade, heat-treatment condition, corrosion exposure and certificate requirements affect the approved route. State the agreed designation and required evidence in the purchase specification. Where service performance depends on the material, the design authority must confirm suitability rather than delegating that decision to a generic machining quotation.

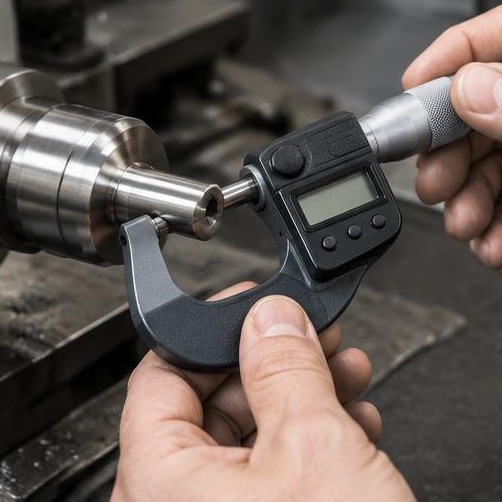

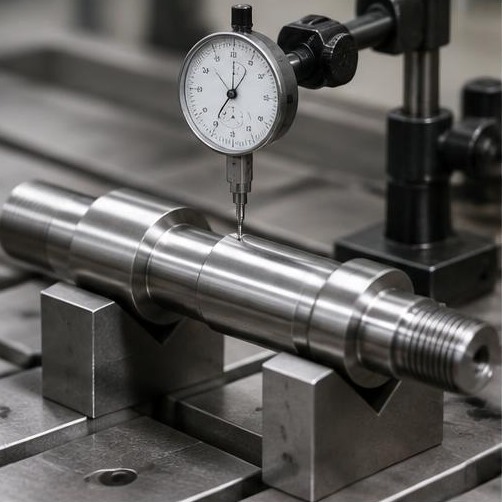

Geometry review: focus on bearing seats, shoulders, seal tracks, grooves and the common rotation datum. Inspection should address journal diameters with micrometers and runout with dial test indicators referenced to the agreed bearing datum. Resolve any feature outside the confirmed measurement scope before ordering, and use the same drawing interpretation for the sample, production report and receiving checks.

Delivery protection: individual journal protection, supported shaft length and handling that avoids bending or impact at centre features. Identify the part and revision on the delivered batch. Damage, a material mix-up or an unclear report can prevent an otherwise dimensionally acceptable part from entering the assembly.

For a review of precision shaft manufacturing, include bearing and seal fits, datum axis, journal length, runout limits, keyways and heat-treatment sequence. Upload a dimensioned PDF with its revision and a matching STEP or IGES model when available. Add sample and batch quantities, required documents and the delivery destination so the offer can separate technical scope from logistics.

Precision Machining India holds ISO 9001:2015 and uses LMW, Jyoti and Ace Micromatics turning centres, a 3-axis Ace Micromatics FANUC VMC and Mitutoyo inspection instruments. This does not imply AS9100, ISO 13485 or 5-axis capability. Any additional process or specialised test must be reviewed and confirmed separately. Request an NDA before sharing confidential drawings when needed, then use the quotation form to begin the part-specific discussion.
